STRUCTURAL THERMAL BREAKS

THERMAL BREAK PLATES IRELAND LTD

In 2015 we were delighted to establish a partnership with Farrat Isolevel UK to become the only approved reseller for the supply & distribution of Farrat Structural Thermal Breaks in the Irish market. With an emphasis on sustainability and energy efficiency coming to the fore this is now an integral part of the business.


OUR CLIENTS

Architects

We offer a range of thermal break plates that are fully, independently, certified for structural use. As building regulations continue to change we believe that minimising thermal bridging to the highest industry standards.

Structural Engineers

High compressive strength and low thermally conductivity material properties mean that Farrat Structural Thermal Breaks will transfer high loads and absorb any bending moments or shear forces, whilst acting as a thermal insulator. The primary benefit of this is that the thermal break will maintain full structural integrity with very limited creep under load while reducing heat loss.

KEY FEATURES & BENEFITS

Farrat Structural Thermal Breaks are high performing thermal insulators that reduce the risk of condensation, mould or corrosion. Suitable for any structural connection and simple to integrate into any structural detail.

Farrat Structural Thermal Breaks are the most efficient & reliable way to thermally separate structural connections and prevent heat loss in the building envelope. Proven to improve building performance and reduce energy loss throughout the lifetime of the building.

Farrat Structural Thermal Breaks are designed and manufactured with ease of installation, durability and follow-on trades in mind. No operational maintenance is required resulting in a very low life-cycle cost.

All materials are manufactured under Farrat’s ISO 9001:2015 Quality System & ISO 14001:2015 Environmental System. Externally audited and certified by the British Board of Agrément (BBA), BRE, SCI and NHBC.

Farrat TBF has been independently tested to achieve a non-combustible calorific rating to EN 1716 and EN 604 standards. Farrat TBF is the only thermal break on the market to maintain very high strength to 500°C and will not melt in the event of fire.

All Farrat Structural Thermal Break materials meet Part L Building Regulations. Farrat TBF is also compliant under Document B Building Regulations for use on buildings above 18 m, making it the only thermal break material on the market verified as safe for High-Rise buildings.

Information To Quote

To enable us to provide a quotation, we will require the following information for each plate:

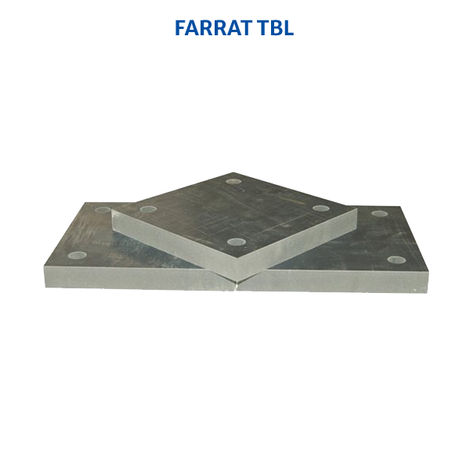

Material – Farrat TBK, Farrat TBF, Farrat TBL
Plate Dimensions & Thickness
Size & Number of Holes
Quantity
Delivery Postcode
Any Special Requirements

Information To Buyers

Standard Plate Thicknesses:

5, 10, 15, 20 & 25 mm

Non-standard thicknesses can be supplied upon request (please contact us to discuss).

Thickness Tolerances:

Farrat TBK: 0 to +0.03 mm
Farrat TBF: 0.5 to + 0.5 mm
Farrat TBL: 0 to + 2.5 mm

Maximum Sheet Sizes:

Farrat TBK: 2400 x 1200 mm
Farrat TBF: 1000 x 1200 mm
Farrat TBL: 2500 x 1250 mm

Technical Enquiries

SUPPLY & CUSTOMER SUPPORT

We aim to respond to all acknowledge enquires within 1 day and be able to deliver onsite within 10 days. In doing so, we will always work our best to meet your project requirements and ensure that all plates are labelled individually to allow for simple installation on site.

Farrat Structural Thermal Breaks are used in over 15,000 projects worldwide and growing , across different sectors. We would like to become your trusted supplier here in Ireland.

Through our own experience and working with Farrats team of engineers, we are always on hand to offer advice relating to specification, detailing, procurement and installation.

REQUEST QUOTE

WE OFFER THE MARKET’S ONLY RANGE OF THERMAL BREAKS THAT ARE CERTIFIED AND APPROVED FOR STRUCTURAL USE.

With our own background in Steel Fabrication, we chose to partner with Farrat Structural Thermal Breaks because we could see the needs our own clients had for the products.

As we move to an ever more sustainable building environment we wanted to know that they are leading the way in eliminating thermal bridging across the construction sector as the most efficient & responsible way to thermally separate structural connections
and prevent heat loss in the building envelope.
